EPS System Diagnostic Test Platform For Audi Touareg Porsche Bentley A4 A5 A6 A7 A8 Q5L Q7 Support 4N 4M 8W After 2017
| weight | 12000.00 g |
| volume weight | 0.00 g |

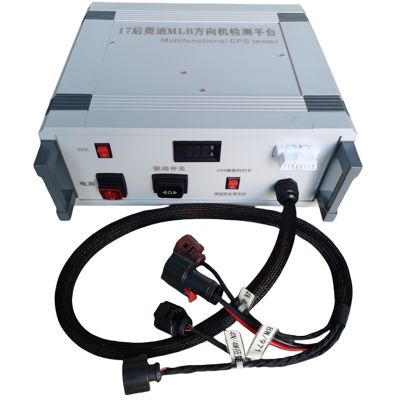

Multi-Function EPS Diagnostic Test Platform.
For Audi Touareg Porsche Bentley A4 A5 A6 A7 A8 Q5L Q7, Car models after 2017.
Support 4N 4M 8W
Function:
1, It can drive steering computer Fully, to make the motor works well.
2, Diagnose and read DTC.
Note: Come without torque drive, you need to connect Torque from car to make it.
more information:
1, support car model after 2017 Audi A4 B9 Q5 Q7 C8.
2, the connect cable of this kit come with label named as the part number, like 8W0 4M0 4N0.

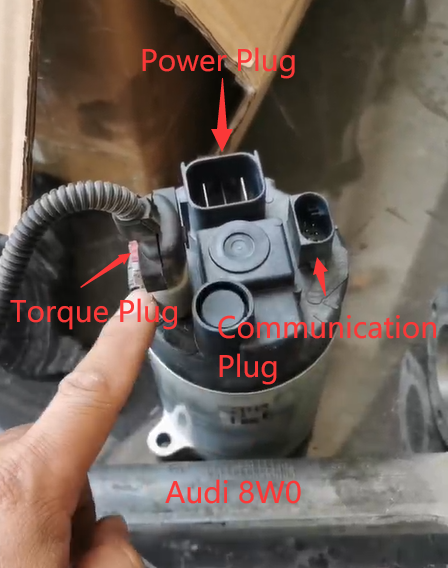

3, you just need to connect the cable to the EPS Module Motor to make the job.
4, connect power supply, turn on ACC Switch button on the tester kit.
5, the drive switch can used to drive motor, it also can change rotate left or right and adjust the speed of the steering machine.
6, you can connect the original torque of your car, also you can make your job without connecting original Torque of your car.
in this case, you can confirm the error come from the torque or motor.
if the Torque repaired, we also can test the torque repaird well or not .
7, please make sure that the connection is well when you read and reflash data.
8, the engineer code as below:
AU73X for 4M0
AU65X for 4N0
AU49X for 8W0, ( for example, A4 B9 is 8W0).

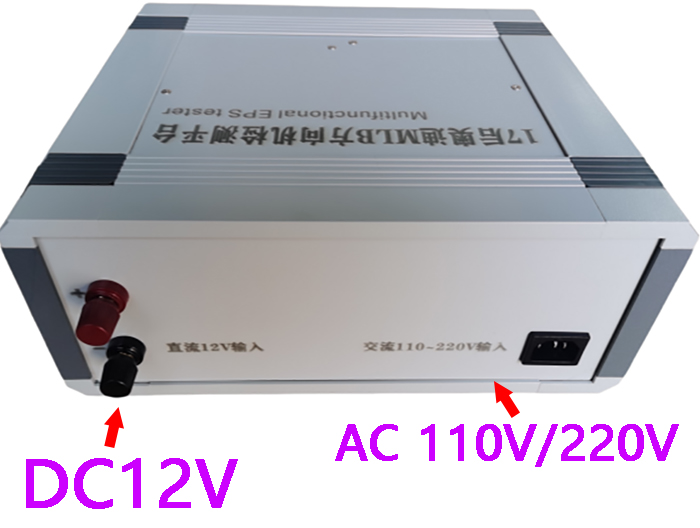

about power:
it support AC 110V~220V & DC 12V
in any case of issues, feel free to contact me.
-
