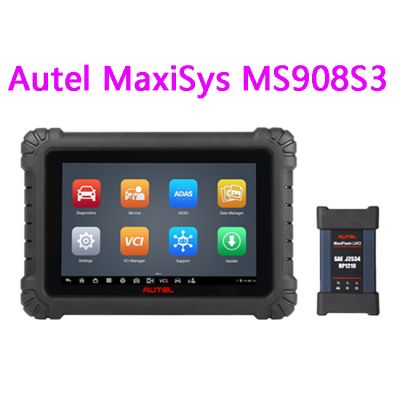

Autel MaxiSys MS908S3 Auto Diagnostic Tool
| brand | Autel |
| weight | 0.00 g |
| volume weight | 0.00 g |
Autel MaxiSys MS908S3 Auto Diagnostic Tool
Autel MaxiSys MS908S3 is a full-function tool that provides repair information for diagnosing vehicles, identifying faults, and researching repairs. It features a powerful octa-core processor and 10.1-inch TFT-LCD capacitive touchscreen for swift diagnostics and optimum viewing. As an advanced diagnostics and information system, MaxiSys MS908S3 offers the best possible coverage of OE-level diagnostics to help you diagnose symptoms, codes, and other vehicle problems quickly and efficiently.
There are two main components to the MaxiSys system:
MaxiSys Tablet — the central processor and monitor for the system.
MaxiFlash LVCI — the vehicle communication interface.
This manual describes the construction and operation of these devices and how they work together to deliver diagnostics solutions.
Autel MS908S3 Specifications
| Item | Description |
| Operating System | Android 10 |
| Processor | Octa-core Processor |
| Memory | 4 GB RAM & 128 GB On-board Memory |
| Display | 10.1-inch LCD capacitive touchscreen with 1920 x 1200 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) BT 5.0 (BR/EDR + BLE) GPS USB 2.0 (Two USB Host Type A, one Mini USB) SD Card (Support up to 256 GB) |
| Camera (Rear) | 3 MP |
| Sensors | Gravity Accelerometer Ambient Light Sensor (ALS) |
| Audio Input / Output | Microphone Dual Speakers 3-band or 4-band 3.5 mm Headset Jack |
| Power and Battery | 11600 mAh 3.85 V Lithium-polymer Battery Charging via 12 V DC Power Supply |
| nput Voltage | 12 V/3 A Adapter |
| Operating Temp. | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp. | -10 °C to 60 °C (14 °F to 140 °F) |
Dimensions (L x W x H) | 311.1 mm (12.25”) x 216.0 mm (8.50”) x 39.9 mm (1.57”) |
Protocols | DoIP, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAEJ2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAEJ1850 PWM (Ford SCP), SAE-J1850 VPW (GM Cla |

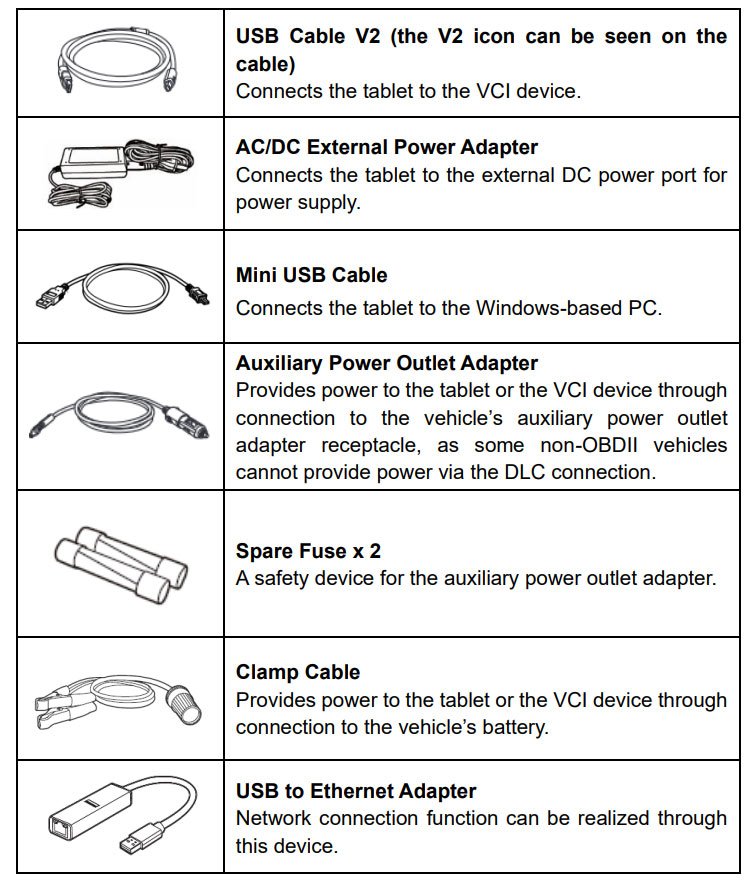

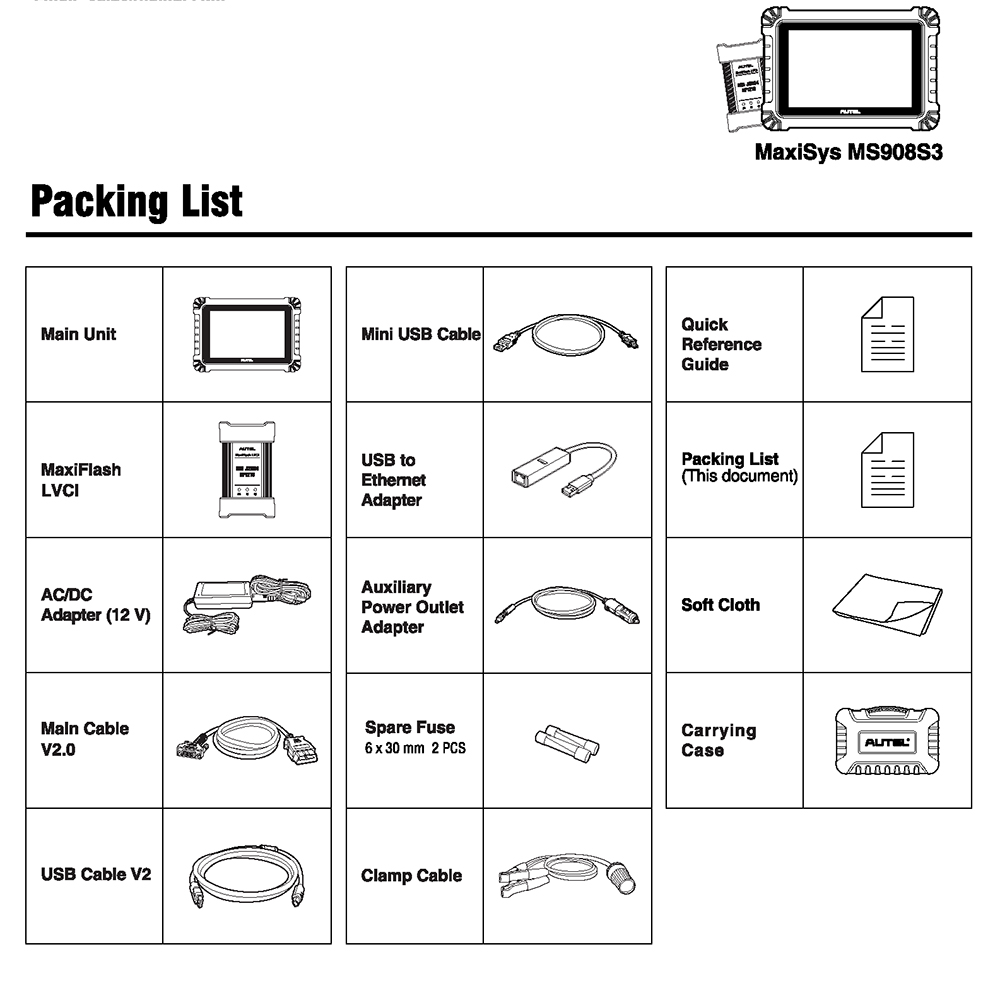

Autel MS908S3 Auto Diagnostic Tool Accessories Kit
-
